SEQ P2: EQ/Option 2–8: RADIAS Vocoder2
61
2–7c: Modulator
Modulator (Modulator Select)
[Audio, Formant Motion]
Source (Audio Source)
[Audio In2, AUX Send L+R, AUX Send L, AUX Send
R]
Gate Sens (Gate Sensitivity) [000…127]
Threshold [000…127]
Select (Formant Motion Select)
[Formant Motion 00…Formant Motion 16]
Play Mode (Formant Motion Play Mode)
[Free Run, Trigger Reset]
For details on these parameters, please see “6–1c:
Modulator” on page 42.
2–7d: Out Mix
Vocoder Output Level [000…127]
Modulator Direct Mix [000…127]
Modulator HPF Gate [Disable, Enable]
Modulator High Mix [000…127]
For details on these parameters, please see “6–1d: Out Mix”
on page 43.
▼2–7: Menu Command
• Write Formant Motion Data ☞p.64
• Copy Vocoder ☞p.64

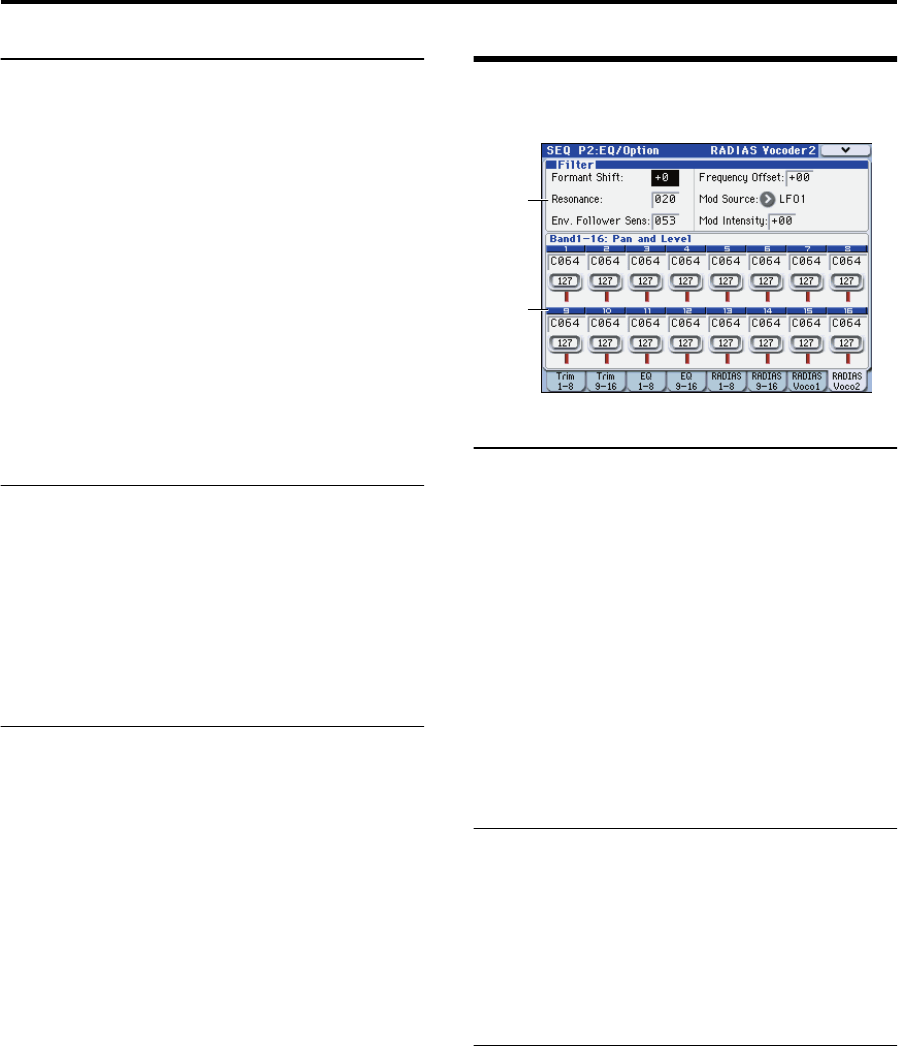

2–8: RADIAS Vocoder2
2–8a: Filter
Formant Shift [–2…+2]
Resonance [000…127]
Env. Follower Sens
(Envelope Follower Sensitivity) [000…127]
Frequency Offset [–63…+63]
Mod Source (Fc Modulation Source)
[EG1…X–Y –Y Mod:#88]
Mod Intensity (Fc Modulation Intensity)
[–63…+63]
For details on these parameters, please see “6–2a: Filter” on
page 44.
2–8b: Band1–16: Pan and Level
Band1…Band16
Pan [L000…C064…R127]
Level [000…127]
For details on these parameters, please see “6–2b: Band1–16:
Pan and Level” on page 44.
▼2–8: Menu Command
• Write Formant Motion Data ☞p.64
• Copy Vocoder ☞p.64
2–8a
2–8b
