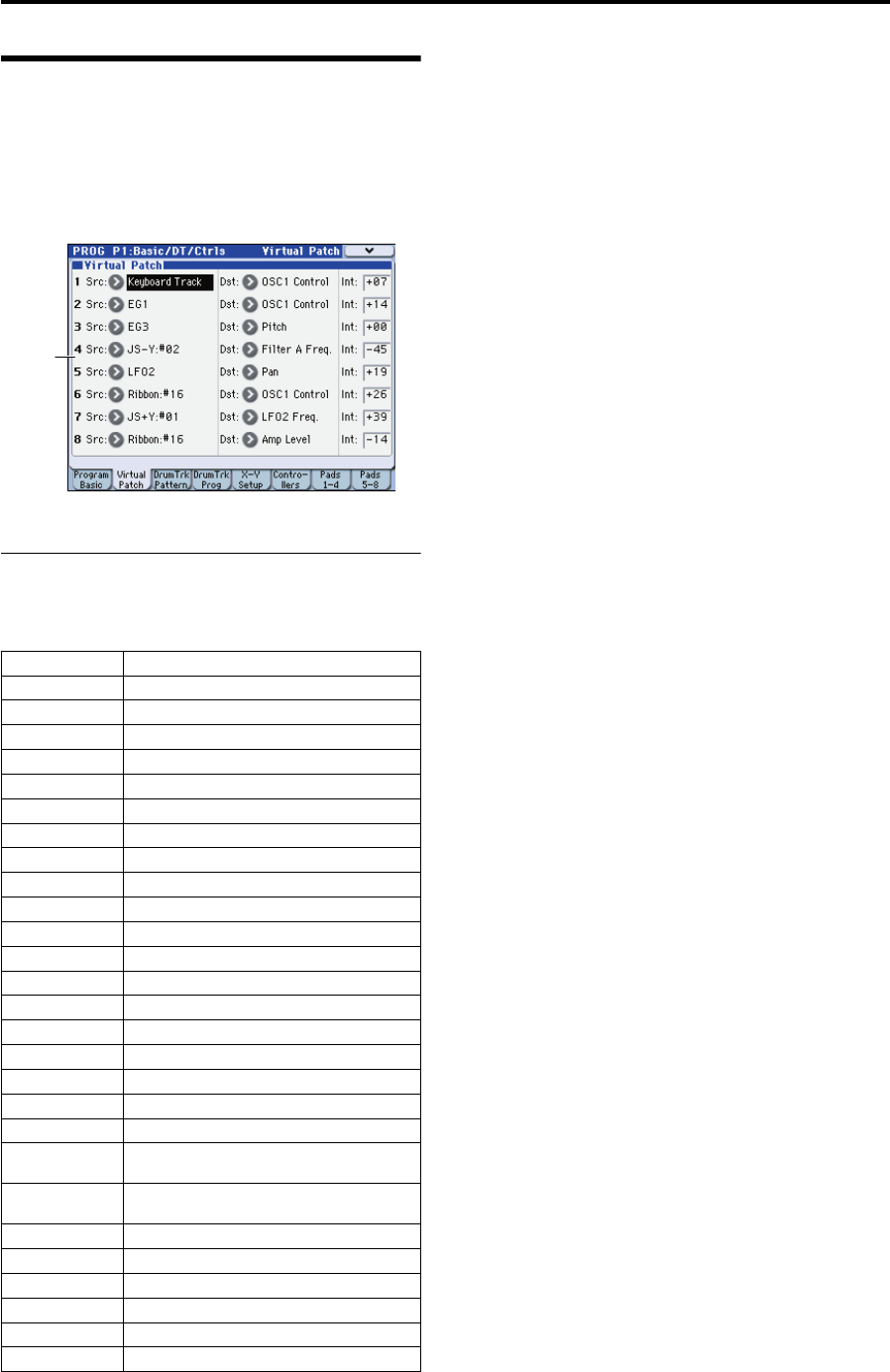

Illustration: Korg EXB-RADIAS for M3 Owner's manual, Page 36

Parameter guide

28

1–2: Virtual Patch

These are the parameters for the Virtual Patch function.

Virtual Patch is a function that lets you assign modulation

sources such as EG or LFO to a variety of parameters. For

each program you can create up to eight of these

combinations.

1–2a: Virtual Patch

Src (Source) [EG1…X–Y –Y Mod:#88]

Selects the modulation source.

Note: Keyboard tracking works according to the pitch as

controlled by pitch bend, transpose, and modulation

sequencer. It does not reﬂect pitch changes produced by

vibrato or virtual patching.

Dst (Destination) [Pitch…LFO2 Freq.]

Selects the parameter that will be the modulation

destination.

Pitch: The pitch of the entire timbre will be modulated.

OSC2 Pitch: The P2: OSC Basic page OSC2 Tune parameter

will be modulated.

OSC1 Control: The P2: OSC Basic page OSC1 Control1

parameter will be modulated.

OSC1 Level, OSC2 Level, Noise Level: The P2: OSC Basic

page Mixer OSC1 Level, OSC2 Level, or Noise Level

parameter will be modulated.

Filter A Type: The P3: FILTER page Filter A Type/Balance

parameter will be modulated.

Filter A Freq.: The P3: FILTER page Filter A Frequency

parameter will be modulated.

Filter A Reso.: The P3: FILTER page Filter A Resonance

parameter will be modulated.

Filter B Freq.: The P3: FILTER page Filter B Frequency

parameter will be modulated.

Drive/WS Dep: The P4: Amp/WaveShape/Driver page

Driver/WaveShape Depth parameter will be modulated.

Amp Level: The P4: Amp/WaveShape/Driver page Amp

Level Amp Level parameter will be modulated.

Pan: The P4: Amp/WaveShape/Driver page Pan parameter

will be modulated.

LFO1 Freq., LFO2 Freq.: The P5: LFO1, LFO2 page LFO1,

LFO2 Frequency [Hz] parameter will be modulated.

Note: If MIDI/TempoSync is turned On for LFO1 or LFO2,

selecting LFO1 Freq. or LFO2 Freq. respectively will have no

effect.

Int (Intensity) [–63…+63]

Speciﬁes the depth of the modulation produced by the

modulation source. If this is set to 0, no modulation will

occur.

EG1, EG2, EG3 EG1, EG2, EG3

LFO1, LFO2 LFO1, LFO2

Keyboard Track note number

Velocity velocity

JS X joystick X (horizontal) direction

JS+Y:#01 joystick+Y (Vertical upward) direction (CC#01)

JS-Y:#02 joystick–Y (Vertical downward) direction (CC#02)

After Touch after touch (channel after touch)

Foot Pedal:#04 foot pedal (CC#04)

Ribbon:#16 ribbon controller (CC#16)

Value Slider:#18 value slider (CC#18)

Slider Mod5:#17 realtime slider 5 (Slider modulation CC#17)

Slider Mod6:#19 realtime slider 6 (Slider modulation CC#19)

Slider Mod7:#20 realtime slider 7 (Slider modulation CC#20)

Slider Mod8:#21 realtime slider8 (Slider modulation CC#21)

Slider Mod5 [+] realtime slider 5 [+]

Slider Mod6 [+] realtime slider6 [+]

Slider Mod7 [+] realtime slider7 [+]

Slider Mod8 [+] realtime slider8 [+]

Damper:#64 damper pedal (CC#64)

SW1 Mod:#80

assignable panel switch 1 (SW1 modulation

CC#80)

SW2 Mod:#81

assignable panel switch 2 (SW2modulation

CC#81)

Foot Switch:#82 foot switch (CC#82)

Controller:#83 MIDI Control Change (CC#83)

X-Y +X Mod:#85 X–Y mode +X (X–Y modulation CC#85)

X-Y -X Mod:#86 X–Y mode –X (X–Y modulation CC#86)

X-Y +Y Mod:#87 X–Y mode +Y (X–Y modulation CC#87)

X-Y -Y Mod:#88 X–Y mode –Y (X–Y modulation CC#88)

1–2a
