Operation
16
Editing a combination (Combination mode)
You can use RADIAS programs in the timbres of a
combination, and create combinations that use them
together with the programs of banks INT-A–E, INT-G, and
USER-A–G. Up to four RADIAS programs can be used in
one combination. The maximum polyphony of the RADIAS
programs will be 24 voices.
Timbre settings
Here we’ll explain how to select bank INT-F programs so
they can be played.
1. Select the combination that you want to edit.

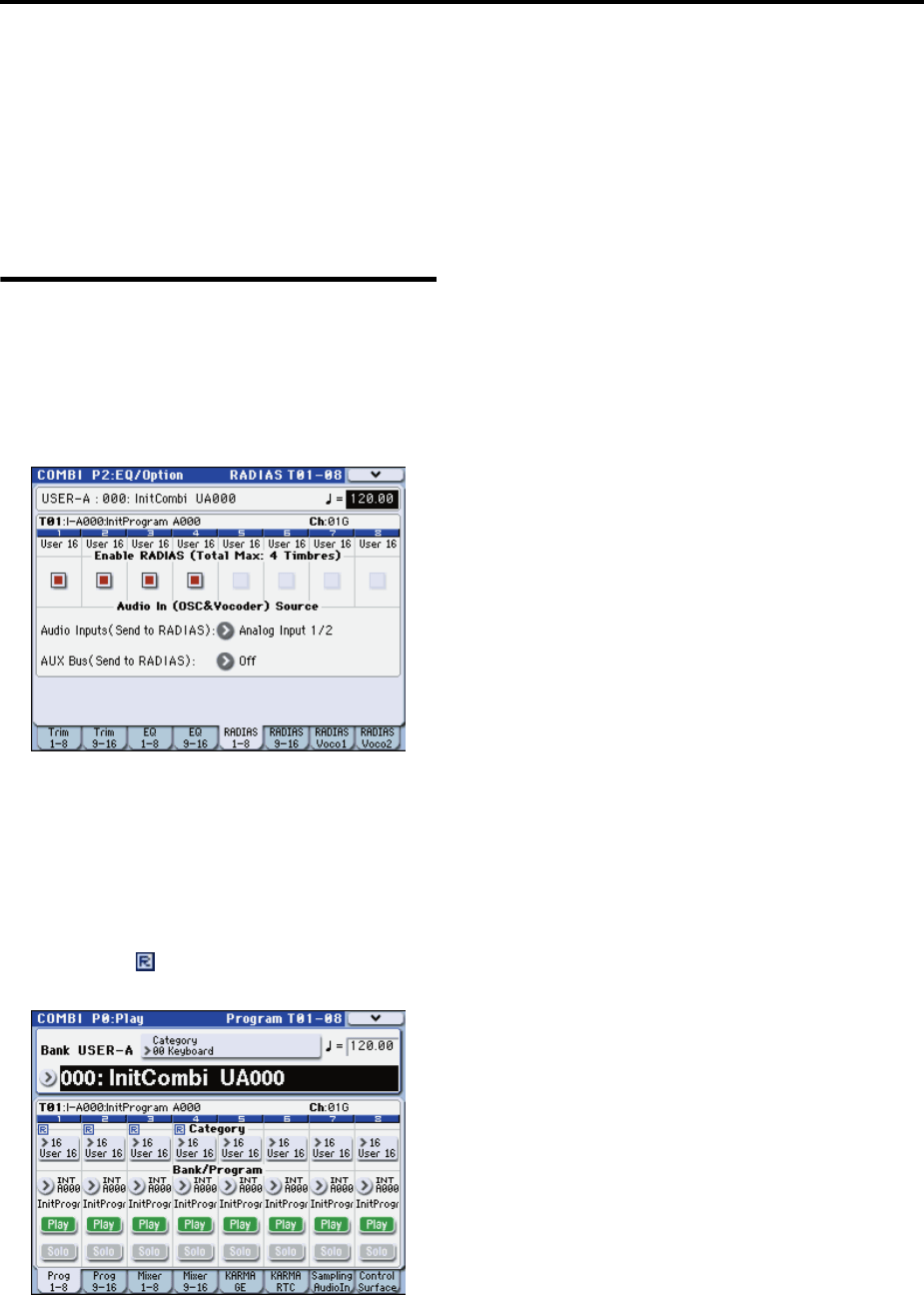

2. Access the COMBI P2-5: RADIAS T01-08 or P2-6:
RADIAS T09-16 page.
3. In “Program Select,” turn “Enable RADIAS” on
(checked) for the timbres in which you want to use a
RADIAS program. When you play the keyboard, you’ll
hear the RADIAS program.
Note: You can turn up to four Enable RADIAS settings on.
Timbres for which this is off (unchecked) will not sound.
4. Access the COMBI P0-1: Combination Select T01-08 or
P0-2: Combination Select T09-16 page.
An indication of “ ” is shown above the category for
timbres whose Enable RADIAS” On (checked).
5. Use “Program Select” to select a bank INT-F program.
6. Edit the parameters of each timbre, make arpeggiator
settings, and make settings for routing, insert effects,
master effects, and total effects.
However, the following parameters will operate in a
different way than when you’re using an EDS program.
Refer to the parameter guide.
• COMBI P3-3(4)c: Force OSC Mode, OSC Select,
Portamento (☞p.54)
• COMBI P3-5(6)c: Pitch Transpose, Detune (Use BPM
Adjust in Menu) (☞p.54)
• COMBI P3-7(8)c: Type (Combi’s Scale) (☞p.55)
• The Keyboard Zones / Velocity Zones “Top Slope” and
“Bottom Slope” settings will have no effect. (COMBI P4:
Zone/Delay)
