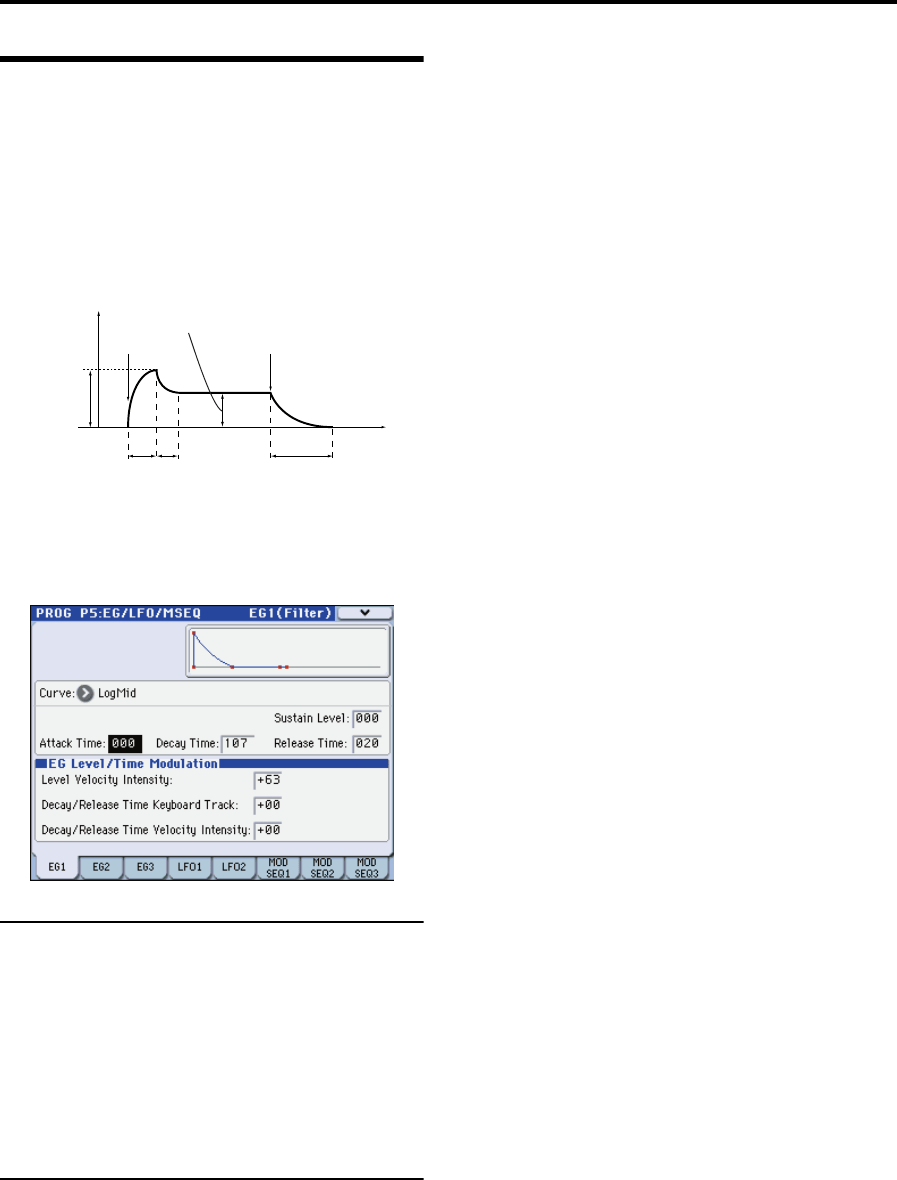

Illustration: Korg EXB-RADIAS for M3 Owner's manual, Page 18

Operation

10

EG (Envelope Generator)

An EG (envelope generator) applies time-varying change to

a parameter of the sound.

EG1 is assigned as the envelope source for ﬁlter cutoff

frequency, and EG2 is assigned as the envelope source for

the amp volume.

You can also use a virtual patch to assign an EG as an

envelope source for another parameter.

For more information, please see “Virtual Patch” on page 11.

The ﬁve parameters (attack time, decay time, release time,

sustain level, and curve) that make up each envelope can be

edited in the PROG 5-1: EG1, P5-2: EG2, and P5-3: EG3

pages.

Envelope settings

1. Edit the “Attack Time”, “Decay Time”, “Release Time”,

and “Sustain Level”.

Higher values for Attack Time, Decay Time, and Release

Time will lengthen the time over which the tone or volume

will change.

2. Use “Curve” to select the curve by which the decay and

release time will change.

You can choose linear, logarithmic, or exponential curve.

This will affect the way in which the envelope changes.

EG Level/Time Modulation

You can use velocity and keyboard tracking to modulate the

EG.

1. Use “Level Velocity” Intensity to specify how velocity

will affect the amount of amplitude change produced

by the EG.

Higher values will allow variations in your playing velocity

to produce greater change in the amplitude.

2. Use “Decay/Release Time Keyboard Track” to specify

how keyboard tracking will affect the decay time and

release time.

Higher values allow keyboard tracking to affect the EG time

settings more greatly.

3. Use “Decay/Release Time Velocity Intensity” to specify

how velocity will affect decay time and release time.

Higher values will allow velocity to affect the EG time

settings more greatly.

Sustain Level

0

Attack Time

Amp Level

Decay Time

Release Time

Time

Note on

Note off

Level
