2 Getting to Know Your Wireless Router

To prepare your router for installation:

1.

Carefully peel off the protective film covering the sides of your router.

2. Set up your wireless router by inserting the router into the stand supplied with it.

3. Place your router in a suitable area for installation (near an AC power outlet and accessible to

the Ethernet cables for your wired computers).

Hardware Features

Before you install and connect your router, take a moment to become familiar with the front and

back panels of the router—especially the status lights on the front panel.

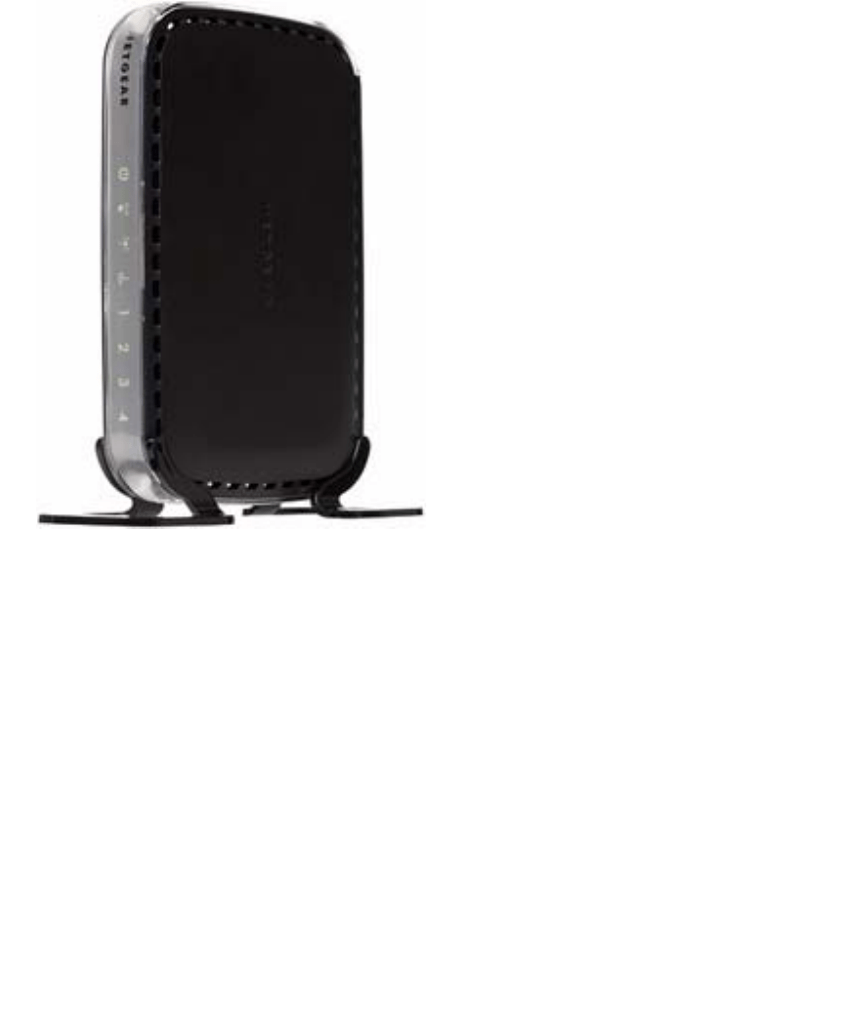

Figure 1
