16 Manually Installing Your Router

7. Connect any additional wired PCs to your router by inserting an Ethernet cable from a PC into

one of the three remaining LAN ports.

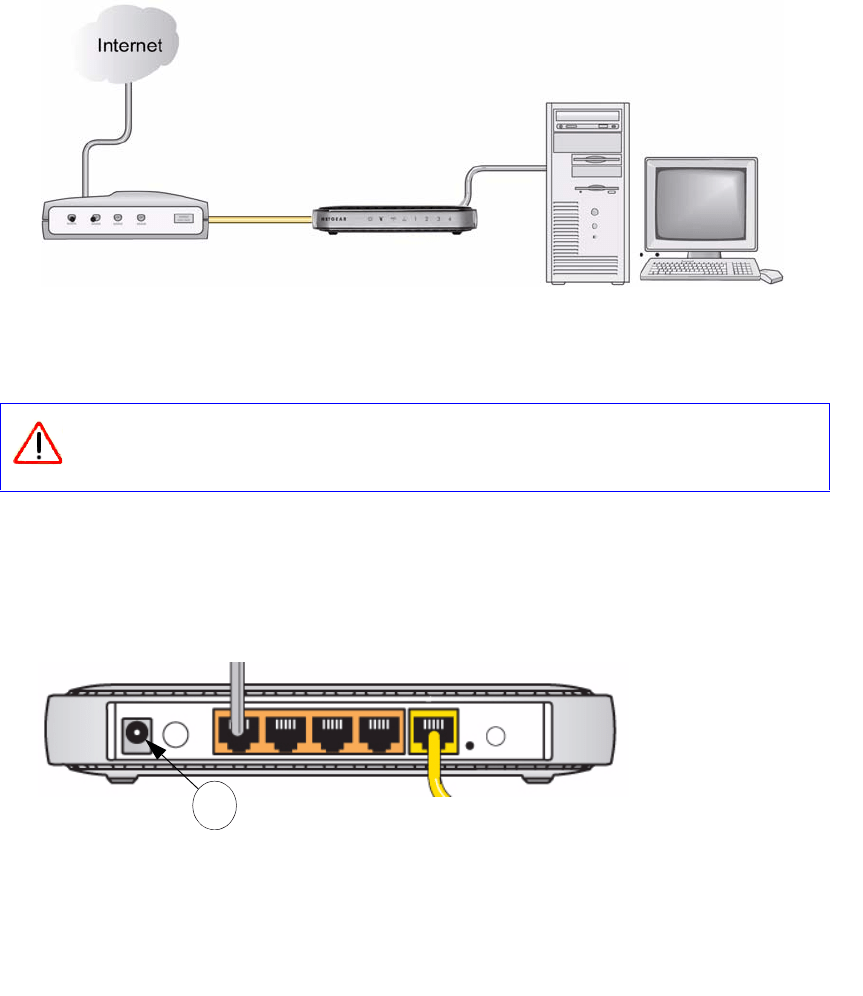

8. Review that your network is now set up (as shown in Figure 9); you are ready to start your

network.

9. Start your network in the correct sequence, as described below.

To start your network:

1.

Plug in and turn on the cable or DSL modem. Wait 2 minutes.

2. Plug the end of the power adapter’s cord into the wall or a power strip, and into the power

adapter outlet of your wireless router (F), as shown in Figure 10. Wait 1 minute.

Figure 9

Failure to start or restart your network in the correct sequence could prevent you

from accessing the Internet.

Figure 10

F
