24 Configuring Your Wireless Network
To add a WPS client to your network:
1.
Log in to the wireless router, type http://www.routerlogin.net or http://
www.routerlogin.com in the address field of your browser, and then click Enter.

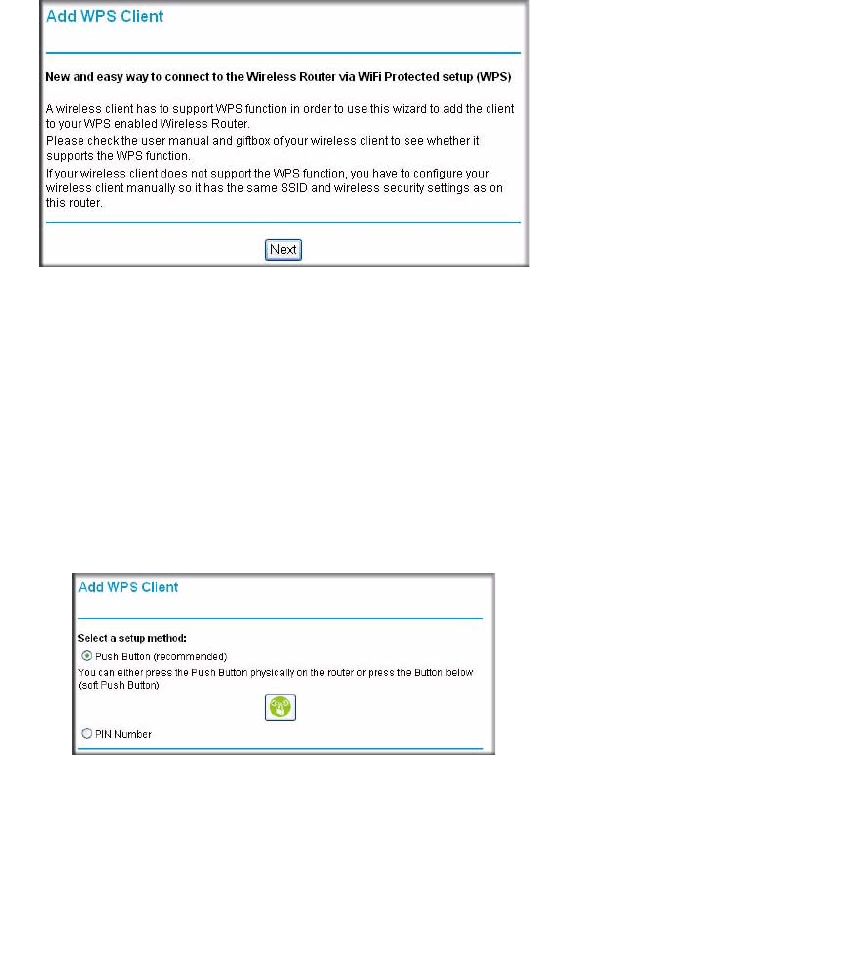

2. On the router main menu, select Add a WPS Client. The Add WPS Client wizard screen
displays. Click Next.
3. Select the method for adding the WPS client. A WPS client can be added using the push-
button method or the PIN method.
• Using the Push-Button. This is the preferred method.
– Select the Push-Button radio button and either press the WPS push-button on the
router or click the soft WPS push-button on the screen (as shown below).
– The router will attempt to communicate with the client; you have 2 minutes to enable
WPS from the client device using the client’s WPS networking utility.
:
Figure 14
Figure 15
