The upper (HIGH) and the lower band (LOW) are shelving filters that increase
or decrease all frequencies above or below their cut-off frequency. The cut-off
frequencies of the upper and lower band are 12 kHz and 80 Hz respectively.
The MID band is configured as a peak filter with a center frequency of 2.5 kHz.
Unlike shelving filters, the peak filter processes a frequency range that extends
upwards and downwards around its middle frequency.
LOW CUT
In addition, the mono channels are equipped with a steep LOW CUT filter
(slope at 18 dB/oct., -3 dB at 75 Hz) designed to eliminate unwanted
low-frequency signal components. These can be noises created by
hand-held microphones, subsonic noise or plosive sounds created by highly
sensitive microphones.
FX
FX sends enable you to feed signals via a variable control from one or more
channels and sum these signals to a bus. The bus appears at the console’s FX send
output and can be fed from there to an external effects device. The return from
the effects unit is then brought back into the console on the stereo channels.
Each FX send is mono and features up to +15 dB gain.
As the name suggests, the FX sends of the XENYX mixing consoles are intended to
drive effects devices (reverb, delay, etc.) and are therefore configured post-fader.
This means that the mix between dry signal and effect remains at the level
determined by the channel’s aux send, irrespective of the channel fader setting.
If this were not the case, the effects signal of the channel would remain audible
even when the fader is lowered to zero. With XENYX mixing consoles, the channel
fader is called LEVEL control.
In the 1002FX/1202FX, the FX send is routed directly to the built-in effects
processor. To make sure that the effects processor receives an input signal,
you shouldn’t turn this control all the way to the left (-∞).
PAN
The PAN control determines the position of the channel signal within the stereo
image. This control features a constant-power characteristic, which means the
signal is always maintained at a constant level, irrespective of position in the
stereo panorama.
LEVEL
The LEVEL control determines the level of the channel signal in the main mix.
Attention: Since the FX ◊ path for the effect processor is connected
post-fader, the LEVEL control has to be turned up in order to get this
channel’s signal to the effects processor!
CLIP
The CLIP-LED’s of the mono channels illuminate when the input signal is driven
too high, which could cause distortion. If this happens, use the TRIM control to
reduce the preamp level until the LED does not light anymore.
Stereo channels2.2
LINE IN
Each stereo channel has two balanced
line level inputs on ¼" connectors
for left and right channels. If only
the connector marked “L” (left)
is used, the channel operates in
mono. The stereo channels are
designed to handle typical line level
signals. Both inputs will also accept
unbalanced connectors.
FX
The FX send of the stereo channels
functions similar to that of the mono
channels. However, since the FX send
bus is mono, a mono sum is first taken
from the stereo input before it is sent to
the FX bus.
BAL
The BAL(ANCE) control determines
the levels of left and right input
signals relative to each other before
both signals are then routed to the
main stereo mix bus. If a channel is
operated in mono via the left line input,
this control has the same function as the PAN control used in the mono channels.
LEVEL
The LEVEL control determines the volume of the channel being sent to the
main mix.
+4/-10
The stereo inputs of the XENYX have an input sensitivity switch which selects
between +4 dBu and -10 dBV. At -10 dBV (home-recording level), the input is
more sensitive (requires less level to drive it) than at +4 dBu (studio level).
Connector array of the main section2.3

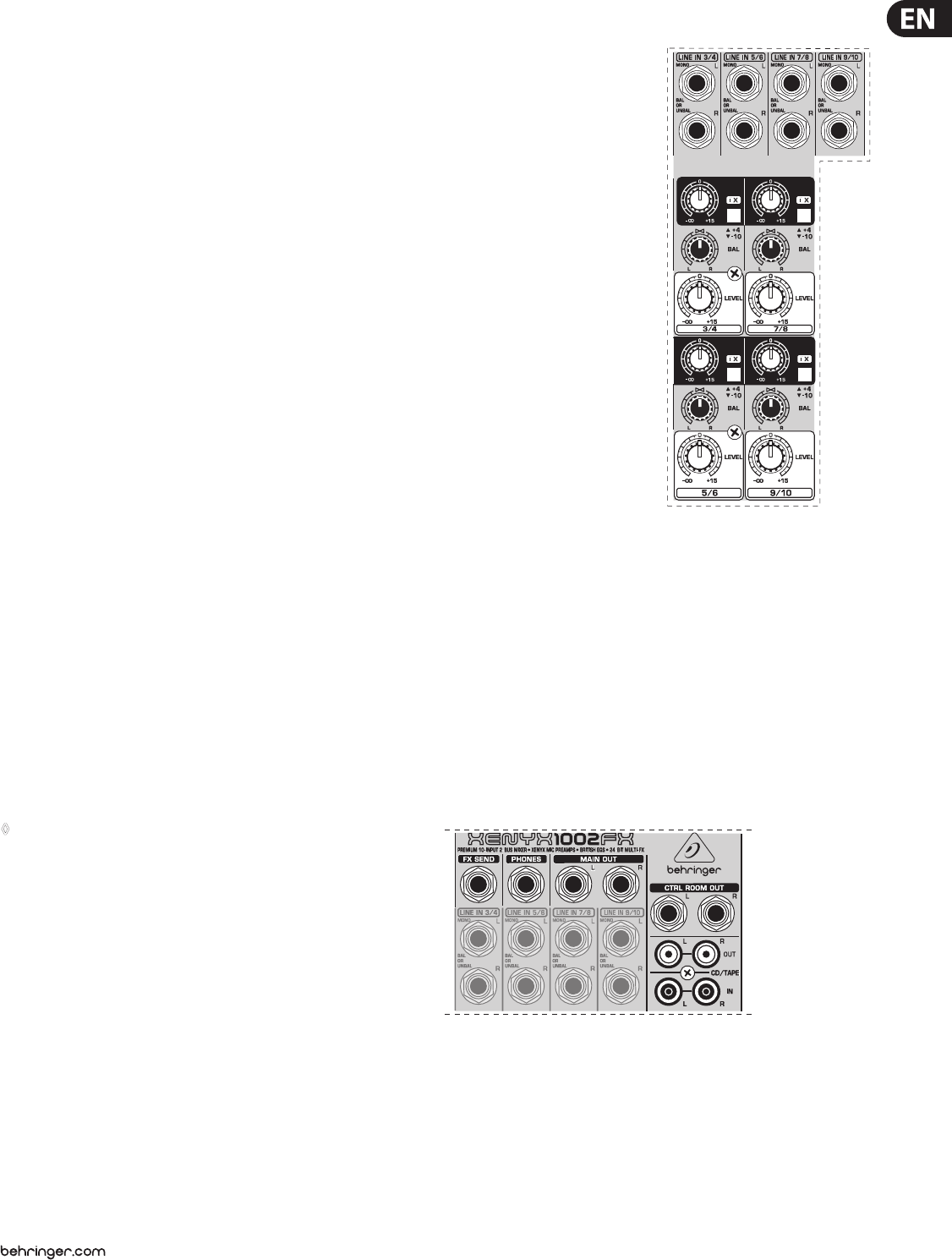

Fig. 2.3: Connectors of the main section
Fig. 2.2: Connectors and controls on the
stereo channels
